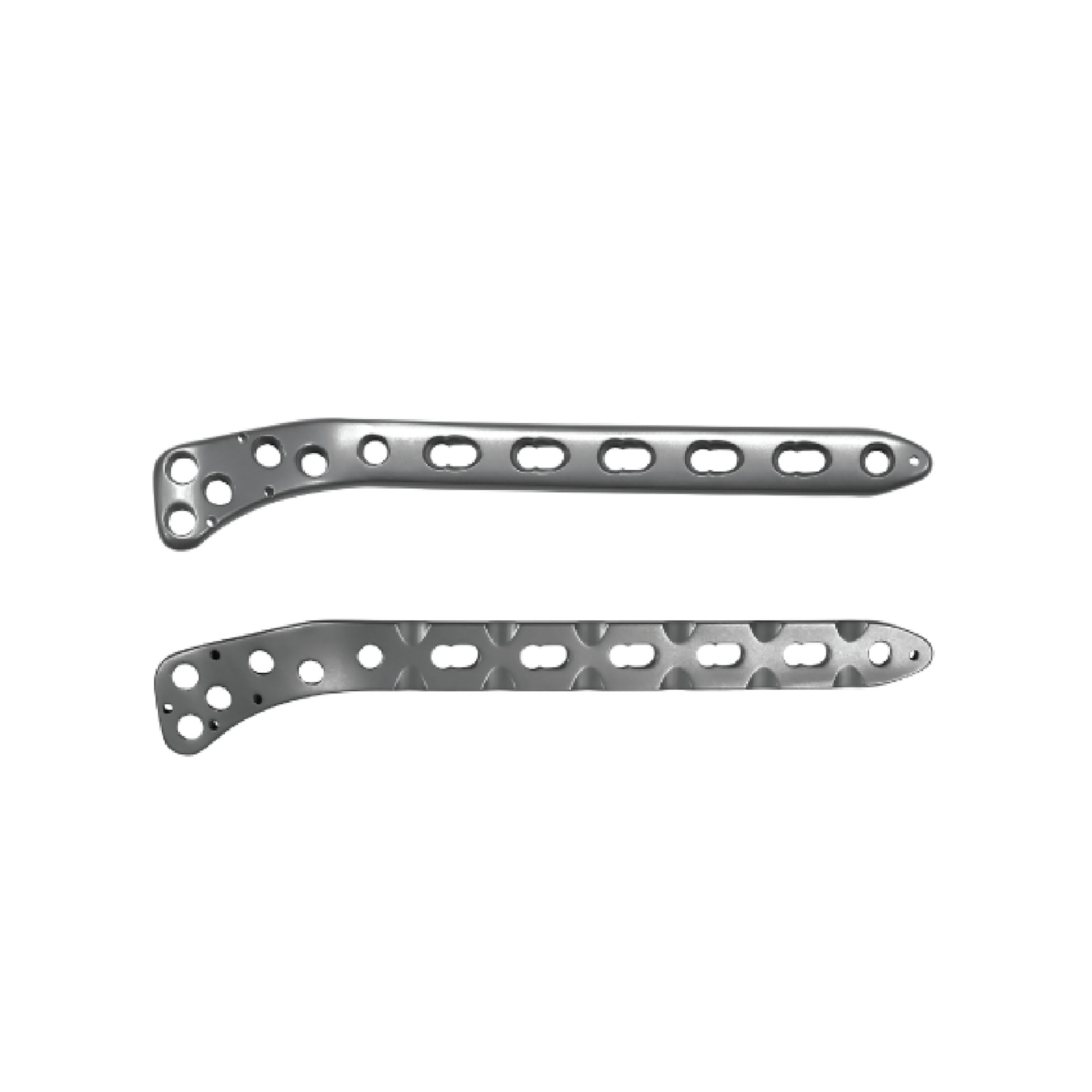

Tibial Platform Lateral Locking Plates Type I ( Left and Right Types )
- Anatomical design: The plate shape accommodate tibial anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 127221100040 / 127221100041 | 4holes L | 123×16×4.6 | Pure Titanium |
| 127221200040 / 127221200041 | 4holes R | 123×16×4.6 | Pure Titanium |
| 127221100050 / 127221100051 | 5holes L | 143×16×4.6 | Pure Titanium |
| 127221200050 / 127221200051 | 5holes R | 143×16×4.6 | Pure Titanium |
| 127221100070 / 127221100071 | 7holes L | 183×16×4.6 | Pure Titanium |
| 127221200070 / 127221200071 | 7holes R | 183×16×4.6 | Pure Titanium |
| 127221100090 / 127221100091 | 9holes L | 223×16×4.6 | Pure Titanium |
| 127221200090 / 127221200091 | 9holes R | 223×16×4.6 | Pure Titanium |
| 127221100110 / 127221100111 | 11holes L | 263×16×4.6 | Pure Titanium |
| 127221200110 / 127221200111 | 11holes R | 263×16×4.6 | Pure Titanium |
| 127221100130 / 127221100131 | 13holes L | 303×16×4.6 | Pure Titanium |
| 127221200130 / 127221200131 | 13holes R | 303×16×4.6 | Pure Titanium |
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For tibial platform fracture, select HC5.0, HA4.5 screws.
