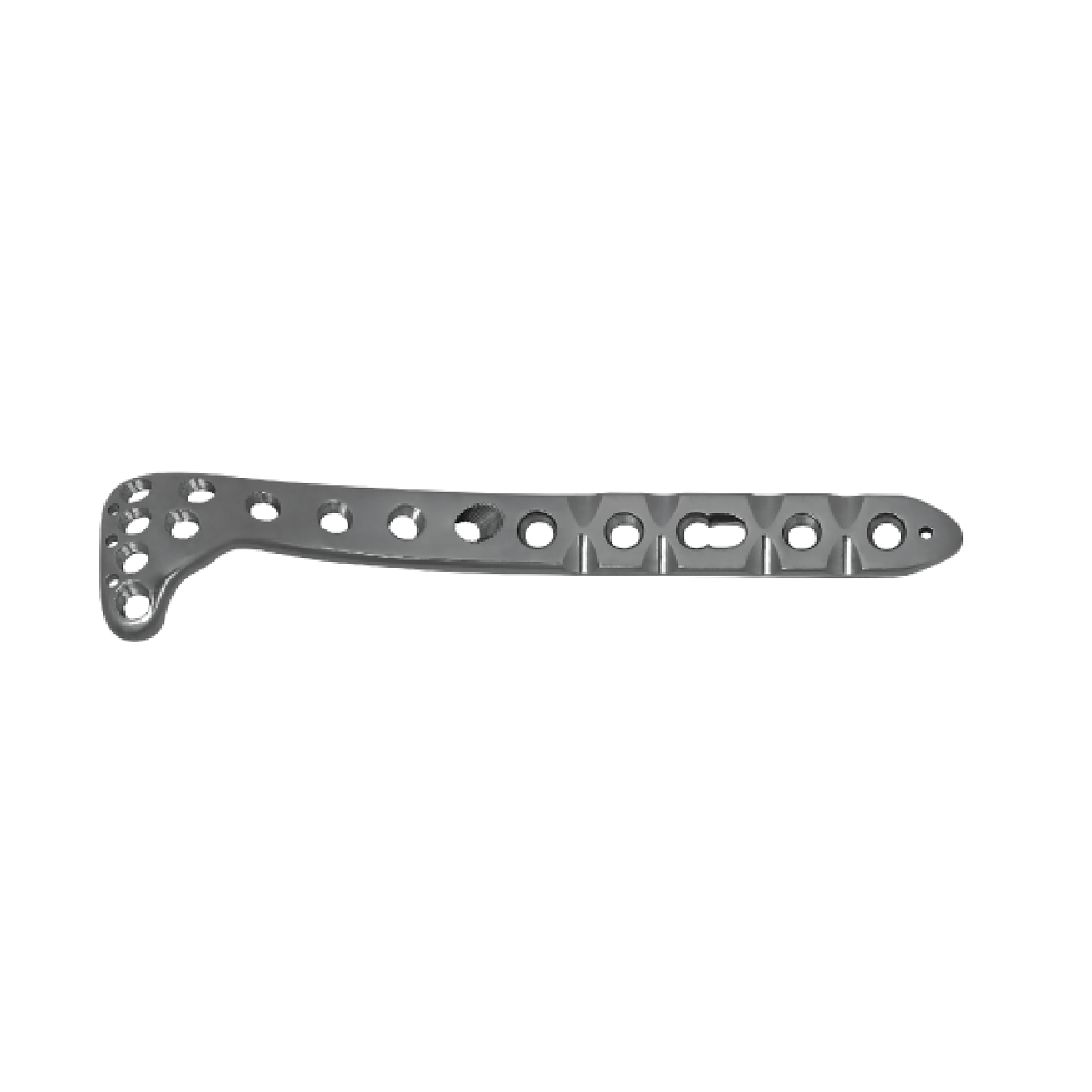

Tibial Platform Lateral Locking Plates Type II (Left and Right Types)
- Anatomical design: The plate shape accommodate tibial anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 126921100050 / 126921100051 | 5holes L | 87×14×3.6 | Pure Titanium |
| 126921200050 / 126921200051 | 5holes R | 87×14×3.6 | Pure Titanium |
| 126921100070 / 126921100071 | 7holes L | 116×14×3.6 | Pure Titanium |
| 126921200070 / 126921200071 | 7holes R | 116×14×3.6 | Pure Titanium |
| 126921100090 / 126921100091 | 9holes L | 144×14×3.6 | Pure Titanium |
| 126921200090 / 126921200091 | 9holes R | 144×14×3.6 | Pure Titanium |
| 126921100110 / 126921100111 | 11holes L | 172×14×3.6 | Pure Titanium |
| 126921200110 / 126921200111 | 11holes R | 172×14×3.6 | Pure Titanium |
| 126921100130 / 126921100131 | 13holes L | 200×14×3.6 | Pure Titanium |
| 126921200130 / 126921200131 | 13holes R | 200×14×3.6 | Pure Titanium |
| 126921100150 / 126921100151 | 15holes L | 228×14×3.6 | Pure Titanium |
| 126921200150 / 126921200151 | 15holes R | 228×14×3.6 | Pure Titanium |
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Choose HC3.5、HC4.0 locking screws, HA3.5 screws.
