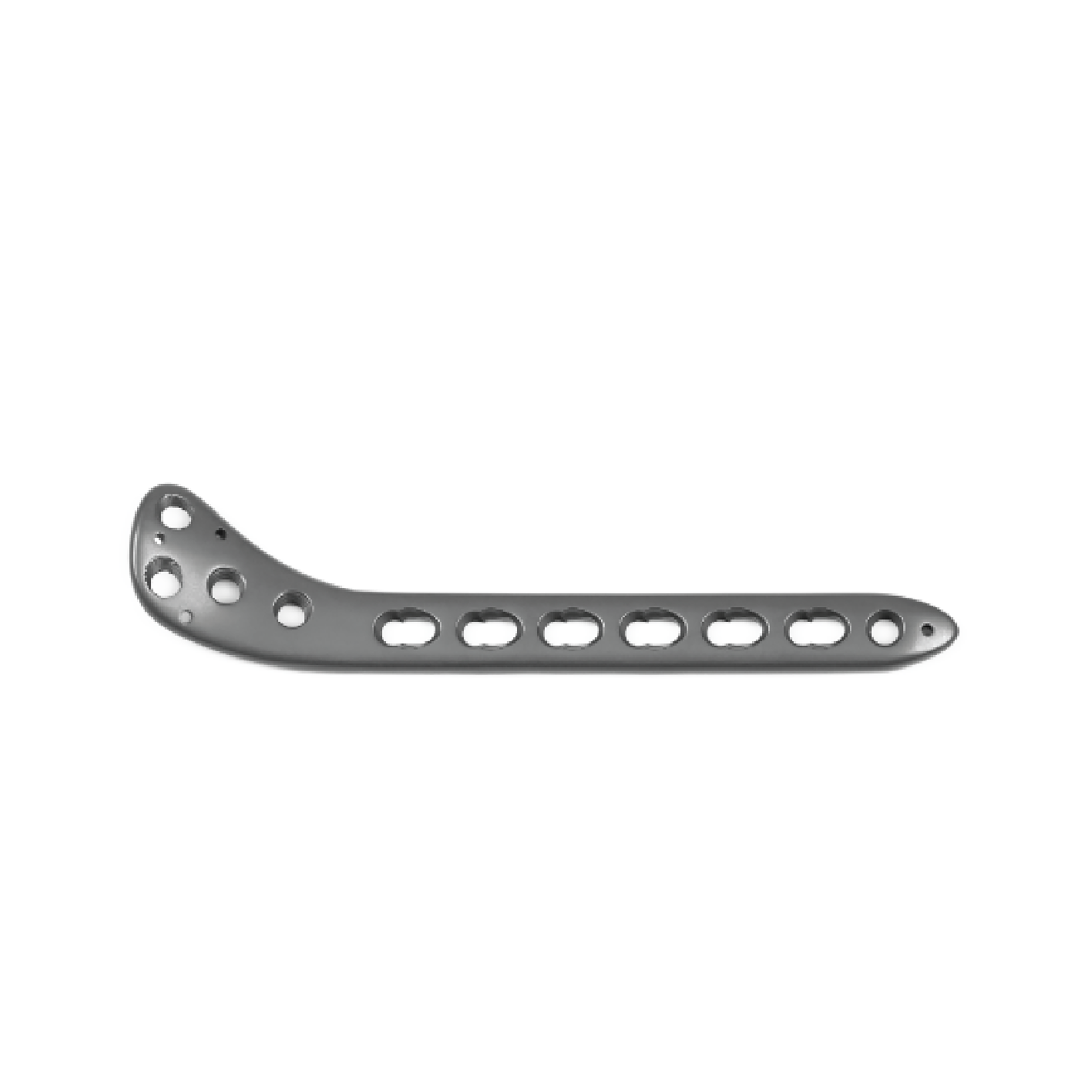

Tibial Platform Medial Locking Plates (Left and Right Types)
- Anatomical design: The plate shape accommodate tibial anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 127321100050 / 127321100051 | 5holes L | 131×16.5×4.6 | Pure Titanium |
| 127321200050 / 127321200051 | 5holes R | 131×16.5×4.6 | Pure Titanium |
| 127321100070 / 127321100071 | 7holes L | 163×16.5×4.6 | Pure Titanium |
| 127321200070 / 127321200071 | 7holes R | 163×16.5×4.6 | Pure Titanium |
| 127321100090 / 127321100091 | 9holes L | 195×16.5×4.6 | Pure Titanium |
| 127321200090 / 127321200091 | 9holes R | 195×16.5×4.6 | Pure Titanium |
| 127321100110 / 127321100111 | 11holes L | 227×16.5×4.6 | Pure Titanium |
| 127321200110 / 127321200111 | 11holes R | 227×16.5×4.6 | Pure Titanium |
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For tibial bone platform and below-platform fracture, select HC5.0, HA4.5 screws
