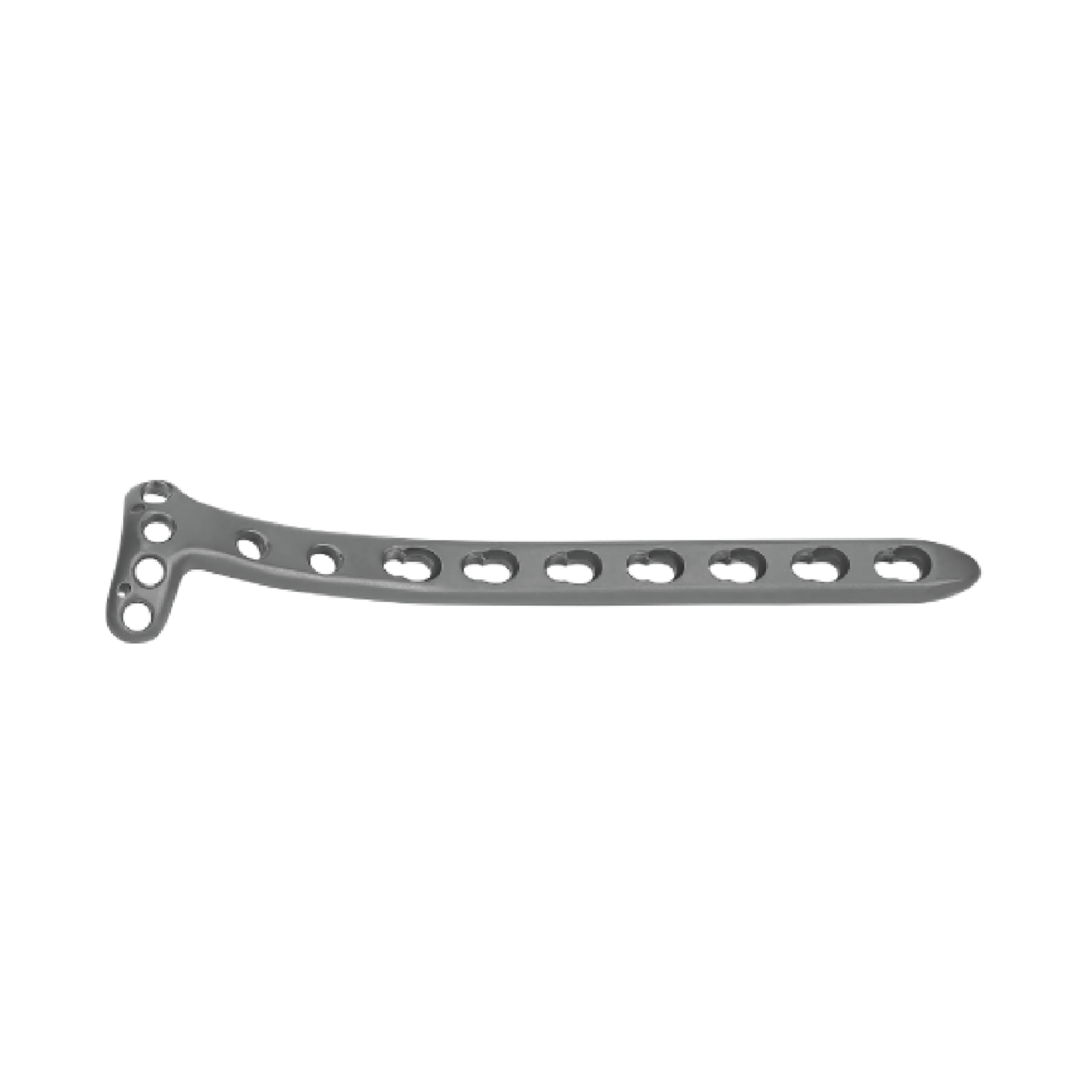

Tibial Platform Medial Locking Plates(Left and Right Types)

Anatomical design: The plate shape accommodate tibial anatomy, fits close to minimize soft tissue irration;
Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
Articular multi-holes design: Convenient for fixing selection, with stable fixation;
Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.

More Information About Our Products

Product No.	Specification	Length×Width×Thickness(mm)	Material
127121100030 / 127121100031	3holes L	66.2×32.7×4	Pure Titanium
127121200030 / 127121200031	3holes R	66.2×32.7×4	Pure Titanium
127121100040 / 127121100041	4holes L	79.2×32.7×4	Pure Titanium
127121200040 / 127121200041	4holes R	79.2×32.7×4	Pure Titanium
127121100050 / 127121100051	5holes L	92.2×32.7×4	Pure Titanium
127121200050 / 127121200051	5holes R	92.2×32.7×4	Pure Titanium
127121100060 / 127121100061	6holes L	105.2×32.7×4	Pure Titanium
127121200060 / 127121200061	6holes R	105.2×32.7×4	Pure Titanium
127121100070 / 127121100071	7holes L	118.2×32.7×4	Pure Titanium
127121200070 / 127121200071	7holes R	118.2×32.7×4	Pure Titanium
127121100080 / 127121100081	8holes L	131.2×32.7×4	Pure Titanium
127121200080 / 127121200081	8holes R	131.2×32.7×4	Pure Titanium
127121100090 / 127121100091	9holes L	144.2×32.7×4	Pure Titanium
127121200090 / 127121200091	9holes R	144.2×32.7×4	Pure Titanium
127121100100 / 127121100101	10holes L	157.2×32.7×4	Pure Titanium
127121200100 / 127121200101	10holes R	157.2×32.7×4	Pure Titanium

The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For tibial platform medial fracture, select HC3.5 and HA3.5 screws.
