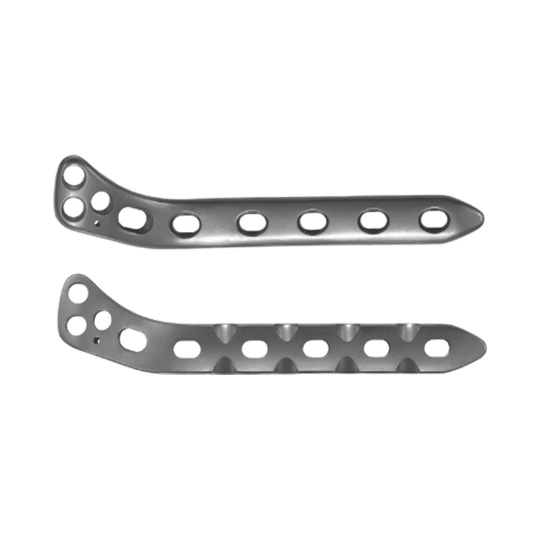

Tibial Platform Lateral Plates II(Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 163721100040 / 163721100041 | 4 holes L | 123×16×4.6 | Pure Titanium |
| 163721200040 / 163721200041 | 4 holes R | 123×16×4.6 | Pure Titanium |
| 163721100050 / 163721100051 | 5 holes L | 143×16×4.6 | Pure Titanium |
| 163721200050 / 163721200051 | 5 holes R | 143×16×4.6 | Pure Titanium |
| 163721100070 / 163721100071 | 7 holes L | 183×16×4.6 | Pure Titanium |
| 163721200070 / 163721200071 | 7 holes R | 183×16×4.6 | Pure Titanium |
| 163721100090 / 163721100091 | 9 holes L | 223×16×4.6 | Pure Titanium |
| 163721200090 / 163721200091 | 9 holes R | 223×16×4.6 | Pure Titanium |
| 163721100110 / 163721100111 | 11 holes L | 263×16×4.6 | Pure Titanium |
| 163721200110 / 163721200111 | 11 holes R | 263×16×4.6 | Pure Titanium |
| 163721100130 / 163721100131 | 13 holes L | 303×16×4.6 | Pure Titanium |
| 163721200130 / 163721200131 | 13 holes R | 303×16×4.6 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For tibial bone platform and below-platform fracture, select HA4.5 and HB6.5 screws
