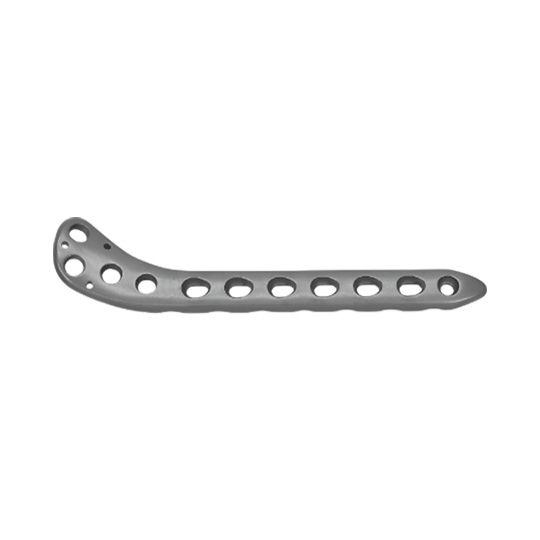

Tibial Platform Medial Plates I (Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 163621100040 / 163621100041 | 4 holes L | 115×16.5×4.6 | Pure Titanium |
| 163621200040 / 163621200041 | 4 holes R | 115×16.5×4.6 | Pure Titanium |
| 163621100050 / 163621100051 | 5 holes L | 131×16.5×4.6 | Pure Titanium |
| 163621200050 / 163621200051 | 5 holes R | 131×16.5×4.6 | Pure Titanium |
| 163621100070 / 163621100071 | 7 holes L | 163×16.5×4.6 | Pure Titanium |
| 163621200070 / 163621200071 | 7 holes R | 163×16.5×4.6 | Pure Titanium |
| 163621100090 / 163621100091 | 9 holes L | 195×16.5×4.6 | Pure Titanium |
| 163621200090 / 163621200091 | 9 holes R | 195×16.5×4.6 | Pure Titanium |
| 163621100110 / 163621100111 | 11 holes L | 227×16.5×4.6 | Pure Titanium |
| 163621200110 / 163621200111 | 11 holes R | 227×16.5×4.6 | Pure Titanium |
| 163621100130 / 163621100131 | 13 holes L | 259×16.5×4.6 | Pure Titanium |
| 163621200130 / 163621200131 | 13 holes R | 259×16.5×4.6 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For tibial bone platform and below-platform fracture, select HA4.5 and HB6.5 screws
