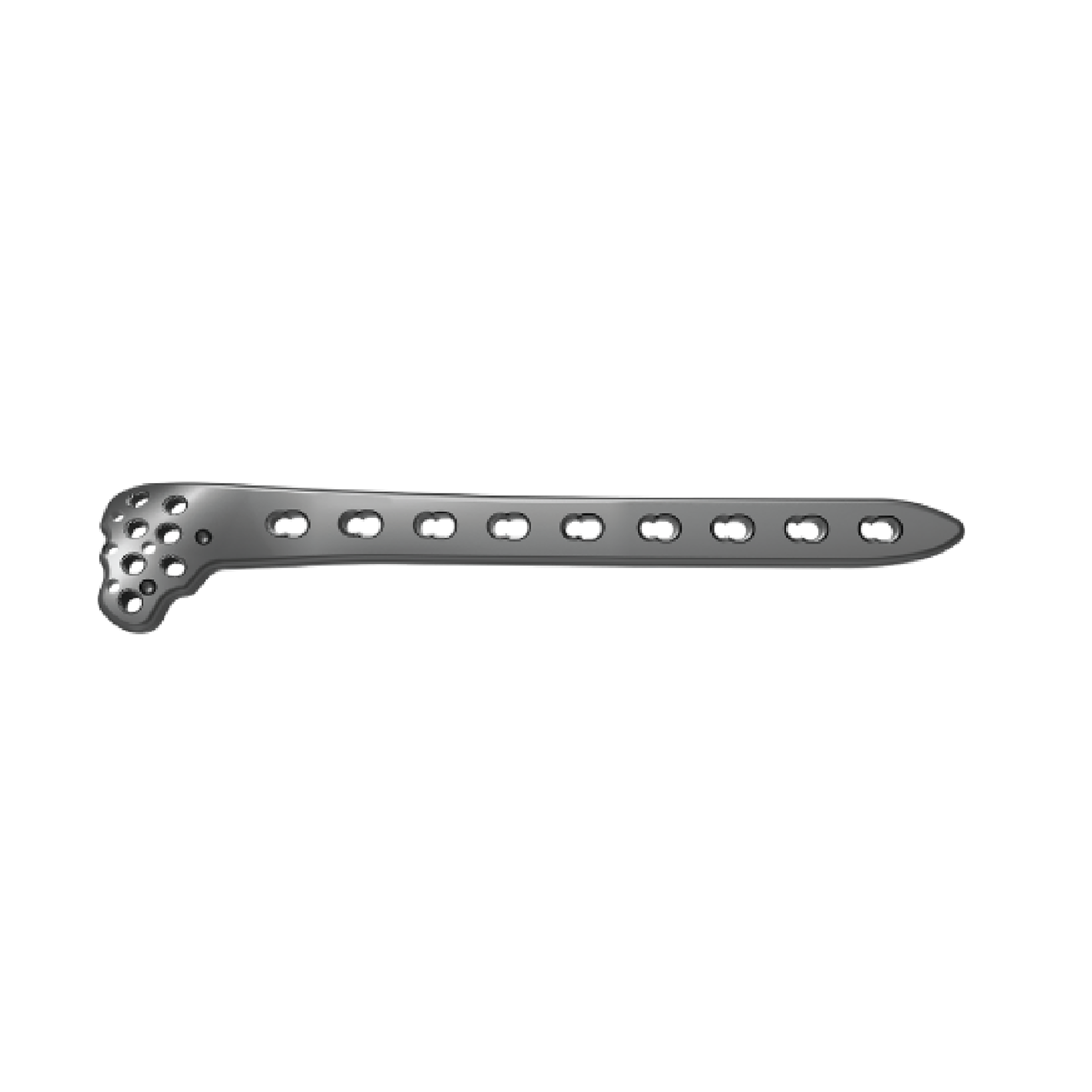

Tibial Proximal Lateral Locking Plates(Left and Right Types)
- Anatomical design: The plate shape accommodate tibial anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 126821100050 / 126821100051 | 5holes L | 122.2×15×4.6 | Pure Titanium |
| 126821200050 / 126821200051 | 5holes R | 122.2×15×4.6 | Pure Titanium |
| 126821100070 / 126821100071 | 7holes L | 154.2×15×4.6 | Pure Titanium |
| 126821200070 / 126821200071 | 7holes R | 154.2×15×4.6 | Pure Titanium |
| 126821100090 / 126821100091 | 9holes L | 186.2×15×4.6 | Pure Titanium |
| 126821200090 / 126821200091 | 9holes R | 186.2×15×4.6 | Pure Titanium |
| 126821100110 / 126821100111 | 11holes L | 218.2×15×4.6 | Pure Titanium |
| 126821200110 / 126821200111 | 11holes R | 218.2×15×4.6 | Pure Titanium |
| 126821100130 / 126821100131 | 13holes L | 250.2×15×4.6 | Pure Titanium |
| 126821200130 / 126821200131 | 13holes R | 250.2×15×4.6 | Pure Titanium |
| 126821100150 / 126821100151 | 15holes L | 282.2×15×4.6 | Pure Titanium |
| 126821200150 / 126821200151 | 15holes R | 282.2×15×4.6 | Pure Titanium |
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For Tibial Platform Lateral fracture, select HC3.5 or HC4.0、HA3.5 screws.
