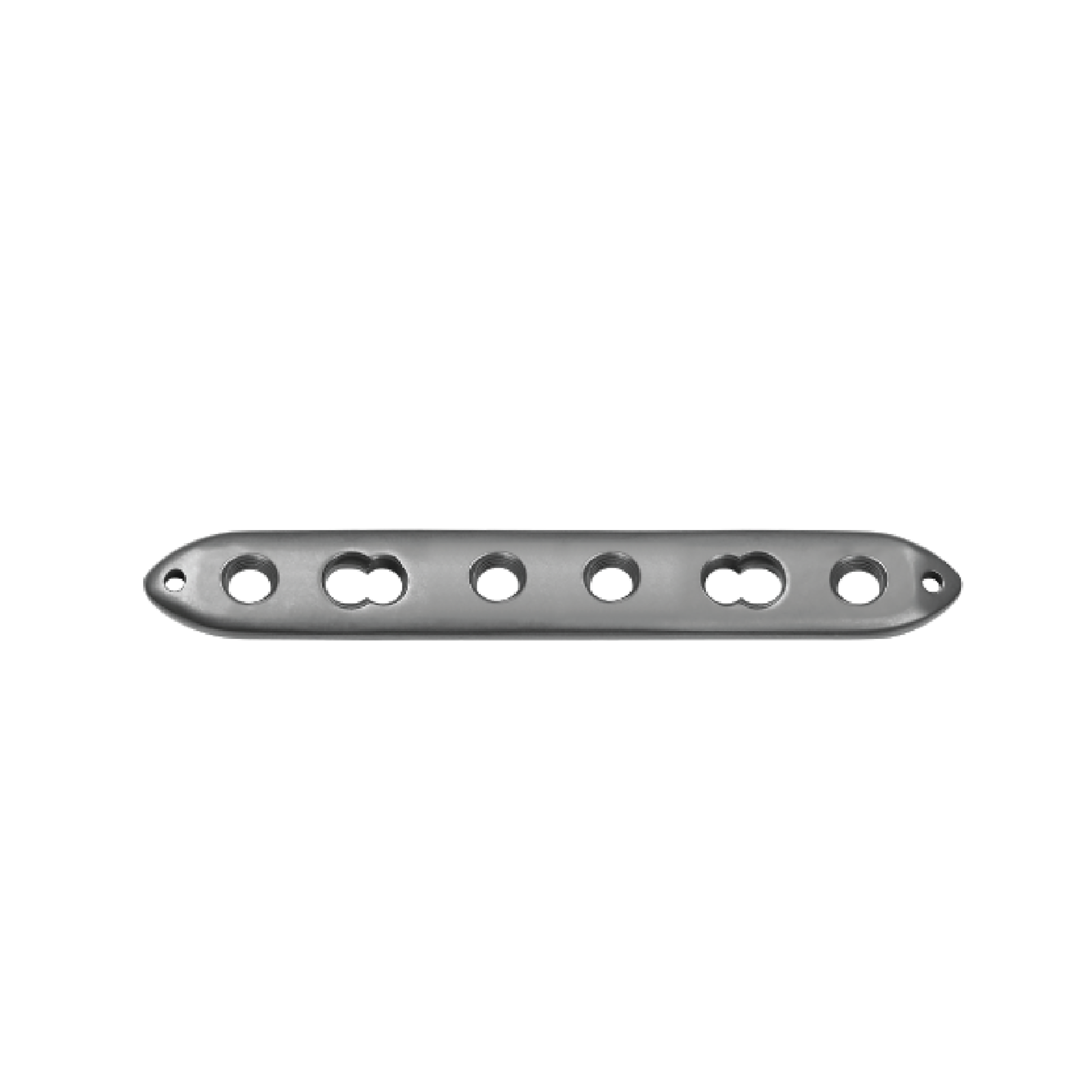

Ulna And Radius Locking Plates (Round Hole Type)
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 123921000050 / 123921000051 | 5holes | 72.2×11×2.8 | Pure Titanium |
| 123921000060 / 123921000061 | 6holes | 85.2×11×2.8 | Pure Titanium |
| 123921000070 / 123921000071 | 7holes | 98.2×11×2.8 | Pure Titanium |
| 123921000080 / 123921000081 | 8holes | 111.2×11×2.8 | Pure Titanium |
| 123921000090 / 123921000091 | 9holes | 124.2×11×2.8 | Pure Titanium |
| 123921000100 / 123921000101 | 10holes | 137.2×11×2.8 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For ulna and radius fracture, select HC3.5, HA3.5 screws.
