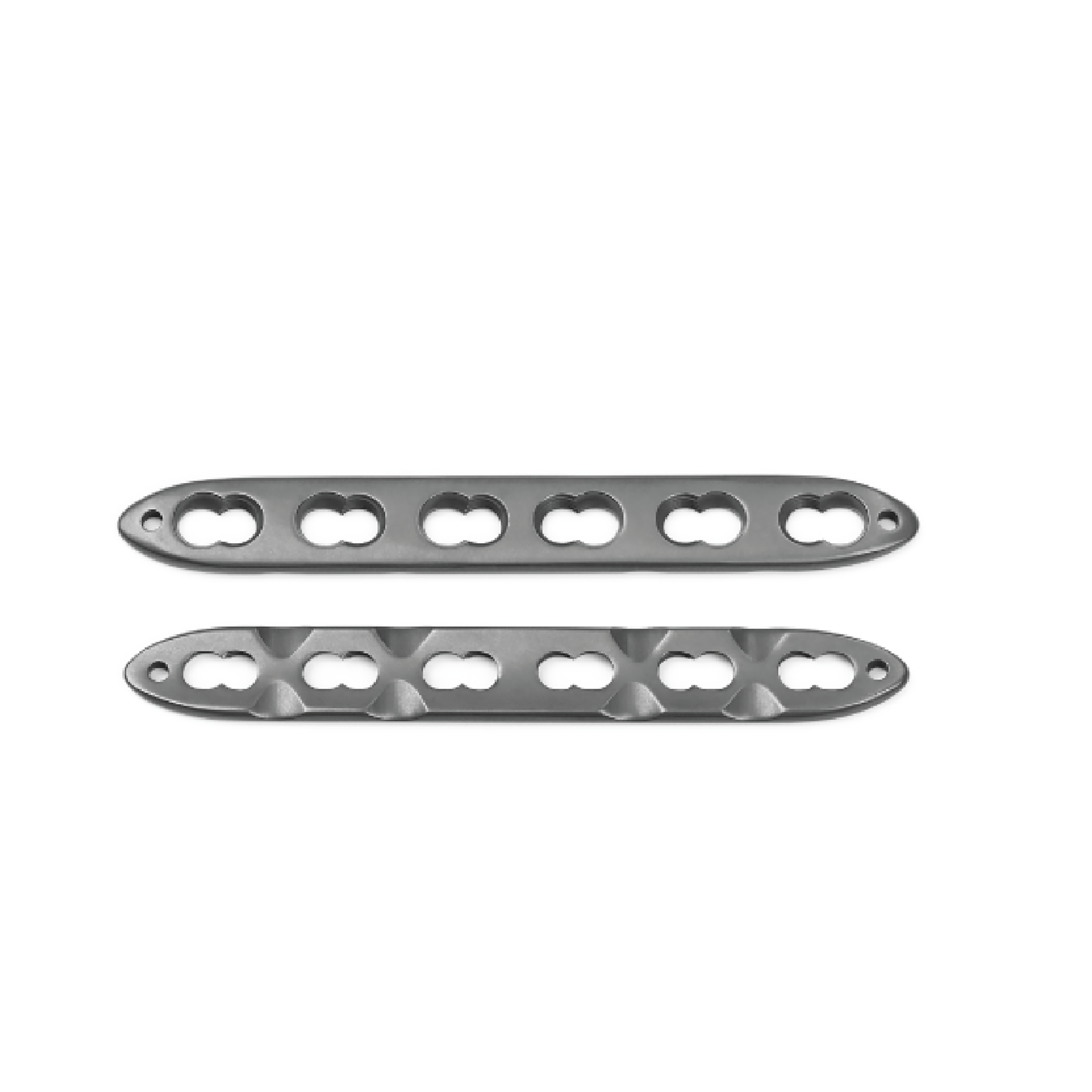

Upper Limb Dynamic Compression Locking Plates (Narrow)
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 124821000040 / 124821000041 | 4holes | 62×12×3.6 | Pure Titanium |
| 124821000050 / 124821000051 | 5holes | 75×12×3.6 | Pure Titanium |
| 124821000060 / 124821000061 | 6holes | 88×12×3.6 | Pure Titanium |
| 124821000070 / 124821000071 | 7holes | 101×12×3.6 | Pure Titanium |
| 124821000080 / 124821000081 | 8holes | 114×12×3.6 | Pure Titanium |
| 124821000090 / 124821000091 | 9holes | 127×12×3.6 | Pure Titanium |
| 124821000100 / 124821000101 | 10holes | 140×12×3.6 | Pure Titanium |
| 124821000110 / 124821000111 | 11holes | 153×12×3.6 | Pure Titanium |
| 124821000120 / 124821000121 | 12holes | 166×12×3.6 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For humerus diaphysis fracture, select HC3.5、HA3.5 screws.
