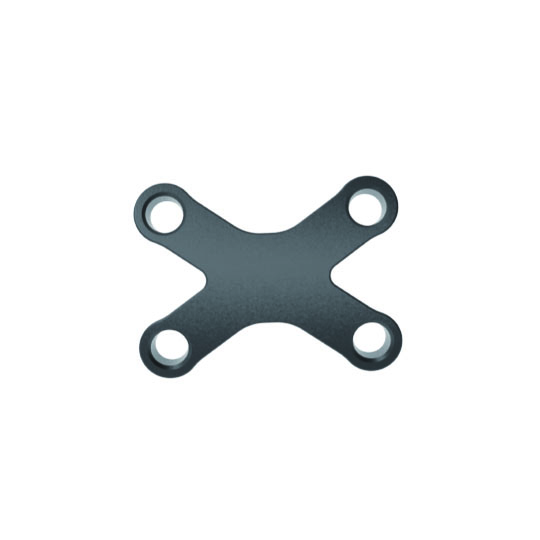

X-shaped Fusion Locking Plate
- To solve the symptoms of arthritis pain and severe trauma requiring joint fusion in patients
- Suitable for ankle fusion internal fixation, including ankle joint, tarsal joint, metatarsocuneiform joint, metatarsophalangeal joint, etc
- To improve the success rate of fusion, the bone plate adopts a universal locking hole design, which can perform multi axis three-dimensional locking
- The design of dynamic pressure holes can promote close contact between the bone ends
- The surface of the product is treated with Type II anodizing, which increases the corrosion resistance and wear resistance of the product
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 6941883901548 | Extra Large | 39.5×19.5×1.5 | TA3G |
| 6941883901555 | Large | 29.5×19.5×1.5 | TA3G |
| 6941883901562 | Medium | 23.5×17.5×1.5 | TA3G |
| 6941883901579 | Small | 23.5×13.5×1.5 | TA3G |
Indication: Tarsal fusion
Adaptation Screw: 2.4/2.7 self tapping locking screw, 2.4/2.7 self tapping compression locking screw
