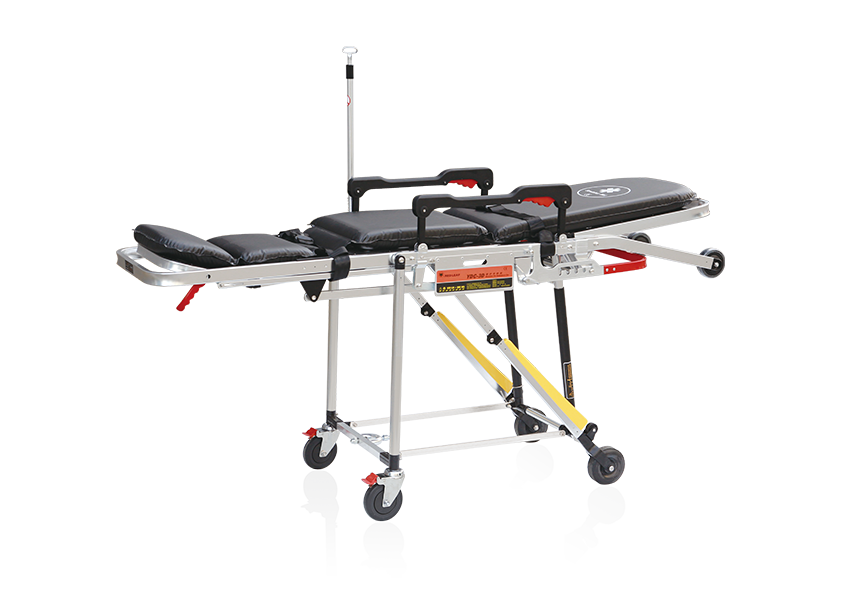

YDC-3D Ambulance Stretcher
- The main material is high-strength aluminum alloy.

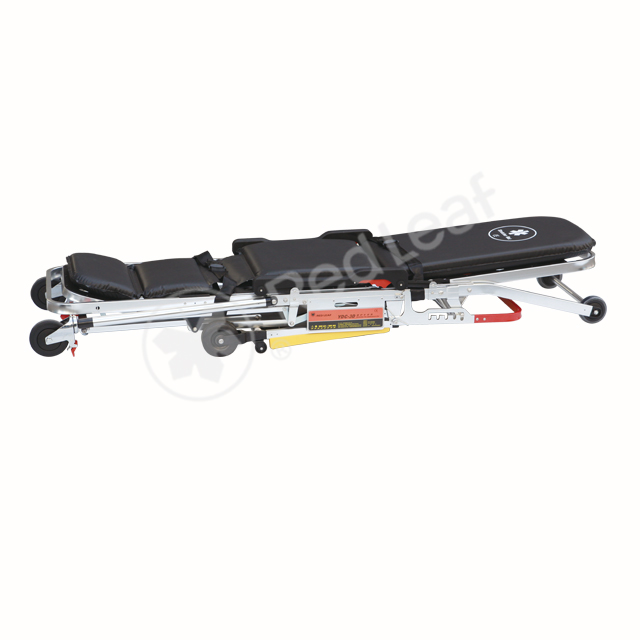

- This stretcher apply to narrow spaces such as elevators, moving the stretcher after folding as a chair.
- Equipped with aluminum alloy guardrails or adjustable guardrails and two safety belts.
- The mattress is made of wear-resistant mesh cloth, with a thickness of 6cm and disposable welding, flame retardant and waterproof.
- Equipped with adjustable two-stage I.V. Stand, The maximum adjustable length is 80cm.
- The stretcher leg folding mechanism is operated by right handle.

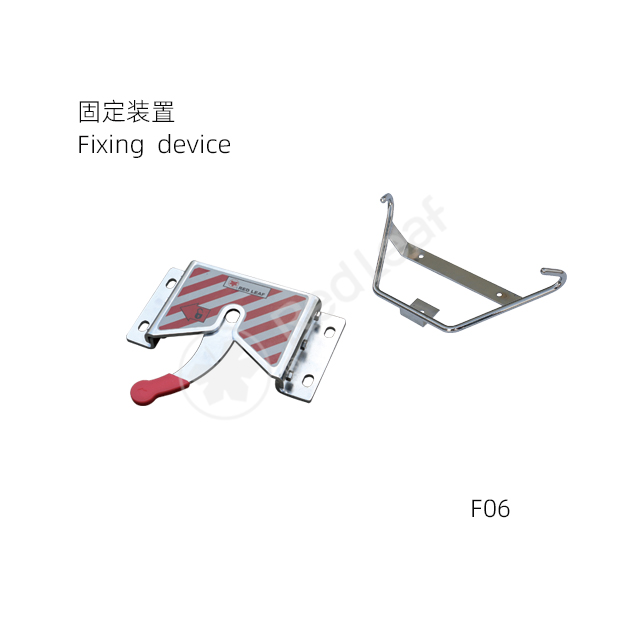

- The stretcher should be firmly locked after being loaded onto the ambulance through the fixed device F06.

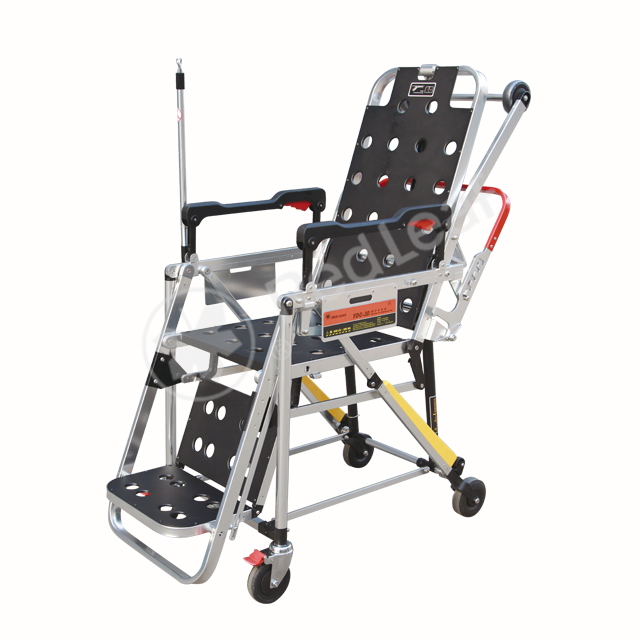

- The stretcher can be folded like a chair, the chair angle can be adjusted for 5 positions.
- Loading height: 63cm Wheel size: 125mm.
Product Details
High position 190*58*84cm
Low position 190*58*26cm

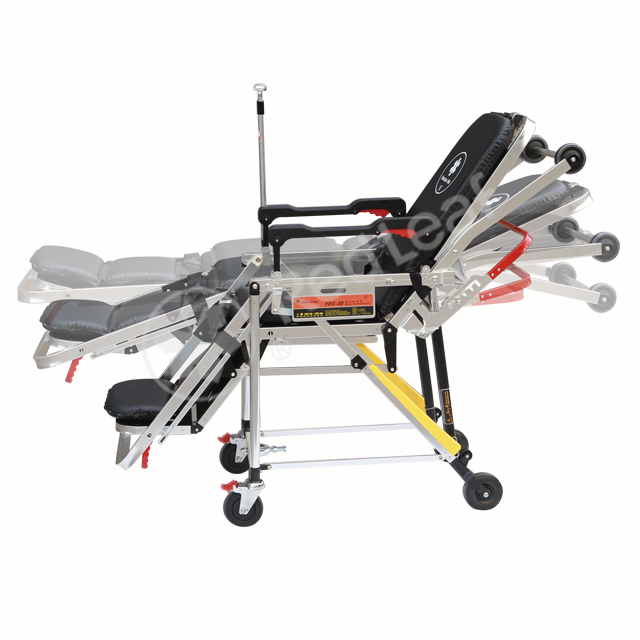

Maximum Angle of the Back 60°
Max Angle of the Knee part 70°
Self-Weight 32KG
Load Bearing 295KG
Packing Quantity 1
Packing Size(L*W*H) 201*64*30cm
G.W 42KG
