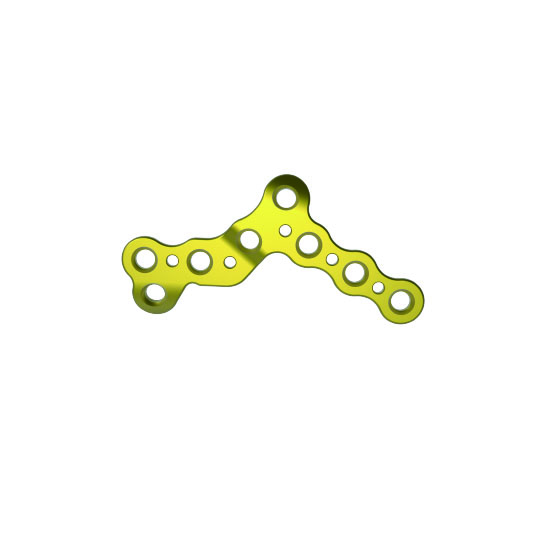

Calcaneal Locking Plate-17
- Used to meet the complex needs of surgeries such as calcaneal fractures and orthotics.
- Suitable for open calcaneal fractures, minimally invasive approaches to calcaneal fractures, type I Ⅱ Ⅲ fractures, calcaneal osteotomy, internal and external column reconstruction, etc.
- The posterior foot series bone plates are all made of pure titanium, which facilitates shaping during surgery and provides patients with better anatomical shapes.
- The calcaneal plate is used in conjunction with low cut locking screws to provide angle locking while reducing stimulation to soft tissues.
More Information About Our Products
- Parameter List
| Product No. | Specification | Thickness(mm) | Material |
|---|---|---|---|
| 6941883924004 | Small Left | 1.5 | TA3G |
| 6941883924011 | Small Right | 1.5 | TA3G |
| 6941883924028 | Medium Left | 1.5 | TA3G |
| 6941883924035 | Medium Right | 1.5 | TA3G |
| 6941883924042 | Large Left | 1.5 | TA3G |
| 6941883924059 | Large Right | 1.5 | TA3G |
Indication: Calcaneal fracture
Adaptation Screw: 3.5 Low cut locking screw
