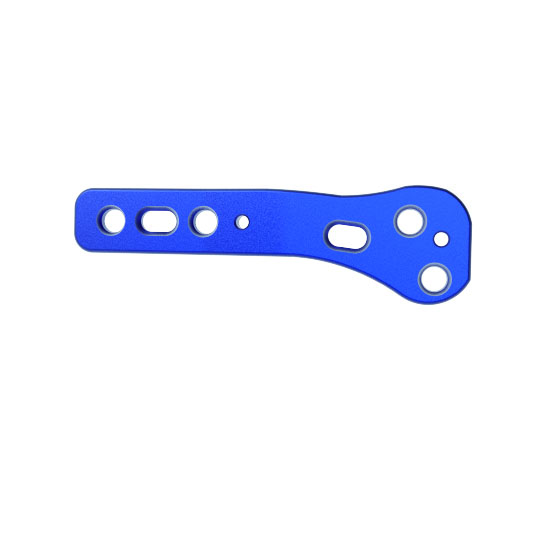

Metatarsophalangeal Joint Fusion Plate-2
- This system provides bone plates tailored to specific indications for the reconstruction of the forefoot and midfoot and acute fractures, helping to reshape the anatomical geometry of the forefoot and midfoot.
- Suitable for foot fractures, fusion, and osteotomy, including metatarsal and phalanx fractures, metatarsophalangeal joint fusion, osteotomy with correction of hallux valgus, and fractures with Lisfranc injury.
- The screw holes in the bone plate consist of compression holes and locking holes, and the fixation method can be flexibly selected according to the position of the fracture line.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width(mm) | Material |
|---|---|---|---|
| 6974405424003 | Small 6holes left | 49×1.5 | TC4 |
| 6974405424010 | Standard 6holes left | 49×1.5 | TC4 |
| 6974405424027 | Lengthen 9holes left | 67.6×1.5 | TC4 |
| 6974405424034 | Small 6holes right | 49×1.5 | TC4 |
| 6974405424041 | Standard 6holes right | 49×1.5 | TC4 |
| 6974405424058 | Lengthen 9holes right | 67.6×1.5 | TC4 |
Indication: Internal fixation of metatarsophalangeal joint fusion
Adaptation Screw: 2.4 self tapping locking/compression screw
Adaptation Screw: 2.4 self tapping locking/compression screw
